Non- Automatic Submersible Pump
item no.:
CFBP-0203-03lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTprice:
$5/PCmarket price:
$7color:
RED AND WHITEMOQ:

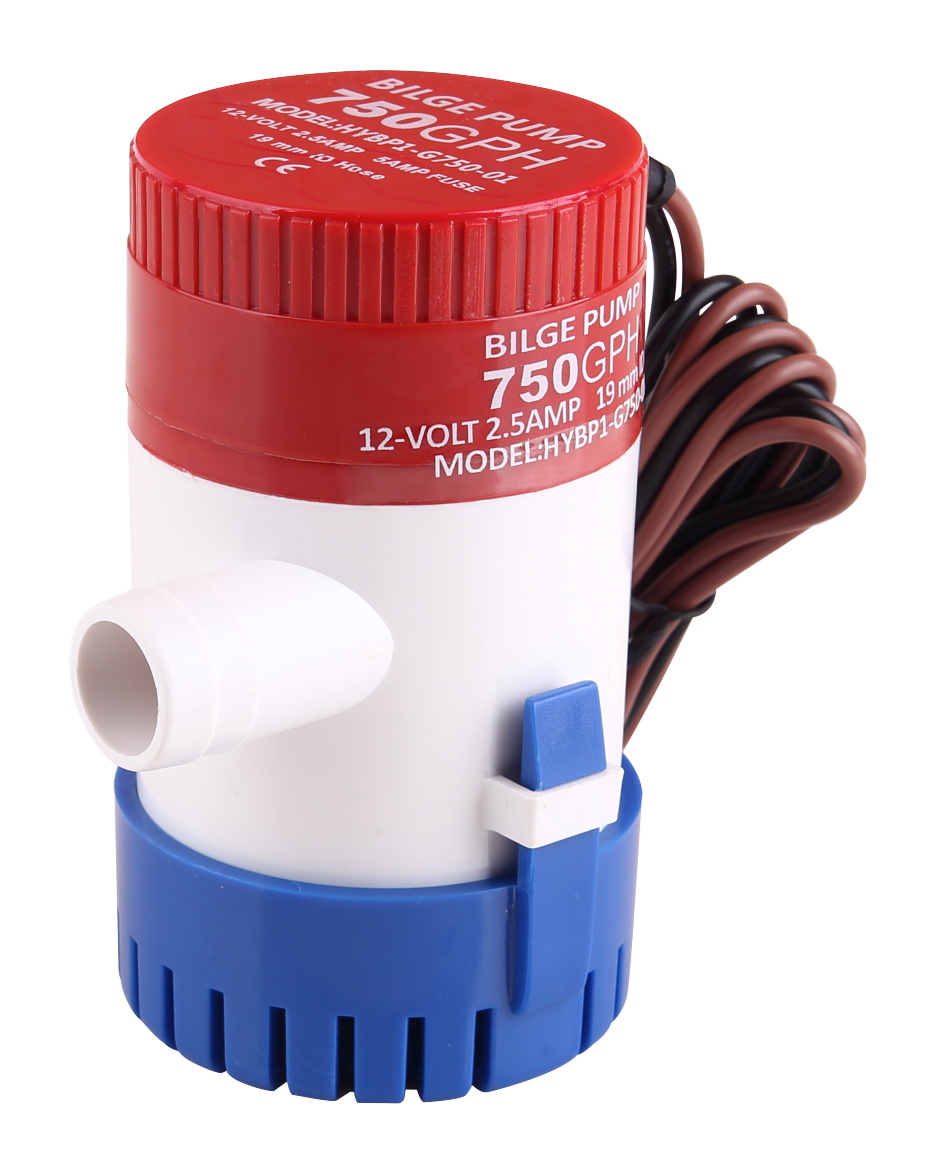

10012V 750GPH Non- Automatic Bilge Pump
12V Electric Marine Submersible non-automatic 750GPH bilge pumps offer water evacuation activated by a panel or float switch. 12v submersible pump include Anti-Airlock protection and exclusive moisture tight seals,marine grade blocked wiring.Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you’ll have no problem changing to us from them.
Features
l 3/4’’ nylon hose bard allow for multiple connections options
l Ignition protection
l ABS exclusive moisture tight seal
l 18AWG,1M long leads
l Compact ,efficient,long life motor
l Easy clean snap-lock strainer base
MORE FEATURES
- 1Year Warranty
- Traditional operation by switch or float switch
- Entirely submersible
- Snap-off strainer base for easy maintenance
- Pump and switch are stand alone products
- Sealed efficient,long life motors
- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft
- Anti-Airlock protection
- Exclusive moisture tight seals
- Marine grade blocked wiring
TYPICAL APPLICATIONS
Marine 20ft, Medical, Pond, Water Research, Solar Water System, etc.

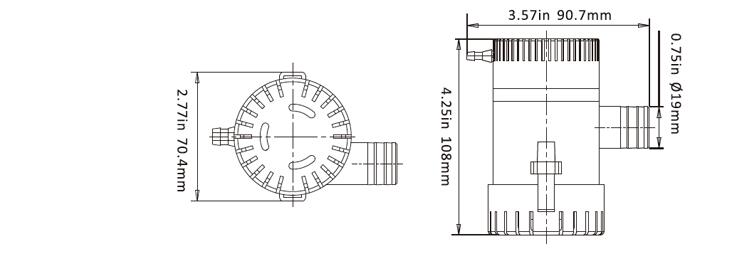

Demension
STANDARD PUMP CONFIGURATIONS
|
Model |
Volt |
Flow rate(GPH) |
Current rate(A) |
Head |
Wire lead |
Outlet dia |
N.W/G.W (KG) |
|
CFBP-0203-03 |
12 |
750 |
3 | 2.5M |
3-PIN/1M |
3/4” |
0.33/0.40 |
|
|
|
|
|
|
|
|
|
Performance
|
Voltage |
Current |
Flow rate |
Head (M） |
|
Open |
2.5 |
675 |
0 |
|
12 |
3.05 |
537 |
0.5 |
|
12 |
3.64 |
377 |
1 |
|
12 |
4.36 |
286 |
1.5 |
|
12 |
4.62 |
145 |
2 |
|
12 |
5 |
0 |
2.5 |
|
Item |
Description |
Quantity |
|
1 |
Wire buckle |
1 |
|
2 |
Pump cover |
1 |
|
3 |
Tapping screw |
1 |
|
4 |
Motor bracket |
1 |
|
5 |
Motor |
1 |
|
6 |
Seal base |
1 |
|
7 |
Seal |
1 |
|
8 |
Motor cover |
1 |
|
9 |
Impeller |
1 |
|
10 |
Pump housing |
1 |
|
11 |
Strainer |
1 |
Shipping information
|
Unit pump weight(N.W/G.W) |
0.45 lbs (0.34 kg) |
|
Unit size |
10 x 9 x 11.8 cm |
|
Mater carton size |
52 x 38 x 26.4 cm |
|
Mater carton quantity |
40pcs |
|
Mater carton weight |
16kgs |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
