The high pressure 24v dc diaphragm pump has stable and reliable performance and long service life.
item no.:
CFRO-3401-125-200Wlead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
BLACKMOQ:
1024v portable water purifier booster diaphragm pressure motor 2.8lpm ro booster pump
The rooster diaphragm water pump is compact and easy to install. This is a high quality 24v DC electric diaphragm pump,low power consumption, super hydrostatic bring extreme atomization enjoyment,Widely used in general industry equipment, medical equipment, chemical equipment, farming (lawn and garden), tour vehicles, special vehicle, ship, beverage, vehicle cleaning, carpet cleaning, ground cleaning, water purification and water treatment equipment.
Features and Benefits
Pump Configuration
|
Model |
CFRO-3401-125-200W |
|
Voltage |
24V |
|
Interface way |
3/8" NPT,1/4” |
|
Input pressure |
15-90PSI |
|
Max Inlet Pressure |
125psi |
|
Bypass Pressure |
82±8psi |
|
Working current |
0.5A |
|
Open flow |
2.8LPM |
|
Power Source |
Electric |
|
Cable Length |
20CM |
| Application |
Family Homes, Food and Beverage Industry, Marine, Water Distribution,water treatment solutions |

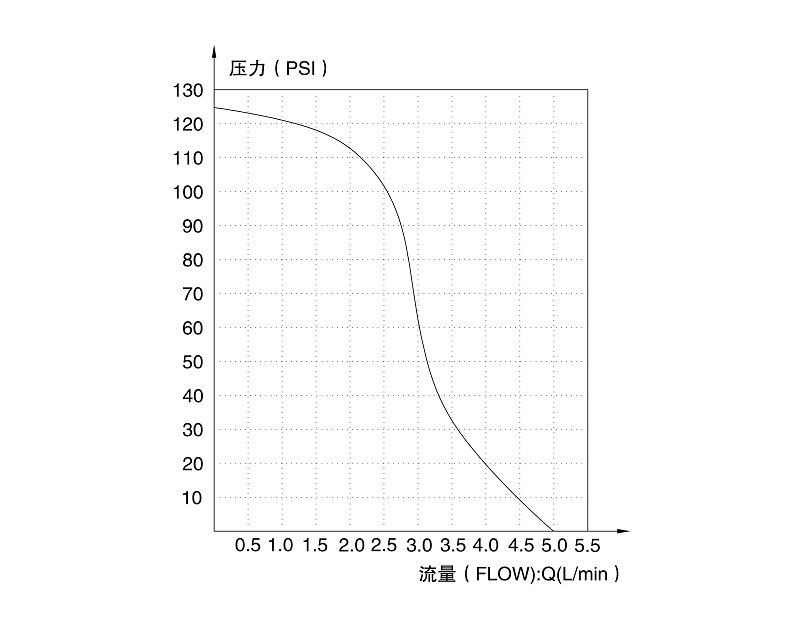

Performance
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
