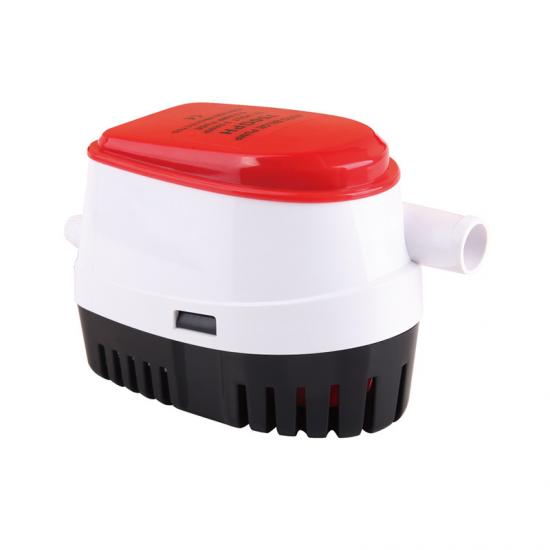

automatic bilge pump for boat
item no.:
CF-BP-020lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
FOBprice:
$9/PCcolor:

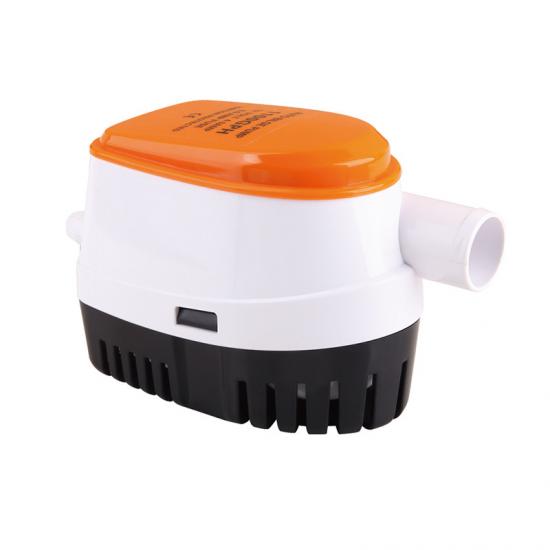

Blue .orange
l 3/4’’ nylon hose bard allow for multiple connections options
l 18AWG,1M long leads
l Ignition protection
l ABS exclusive moisture tight seal,liquid temperature 110°F (43°C) temperature limits
l All in one pump& switch, and no flow switch required. Pump turns on when water level rises and shuts off when water removes.
l Compact ,efficient,long life motor
l Easy clean snap-lock strainer base
- 1Year Warranty
- Snap-off strainer base for easy maintenance
- Sealed efficient,long life motors
- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft
- Anti-Airlock protection
TYPICAL APPLICATIONS
Marine, Medical, Pond, Water Research, etc.

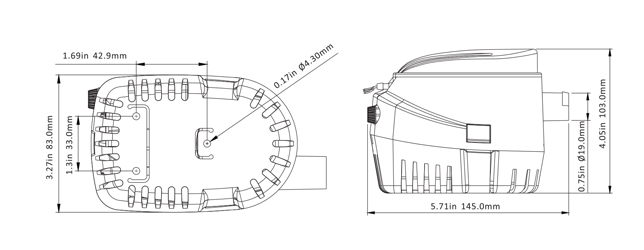

DEMENSION
STANDARD PUMP CONFIGURATIONS
|
Model |
Volt |
Flow rate(GPH) |
Current rate(A) |
Head |
Wire lead |
Outlet dia |
N.W/G.W (KG) |
|
CFBP-0201-01 |
12 |
750 |
6 |
3m |
1M |
3/4" |
0.47/0.52 |
|
CFBP-040-01 |
24 |
750 |
3 |
3m |
1M |
3/4" |
0.47/0.52 |

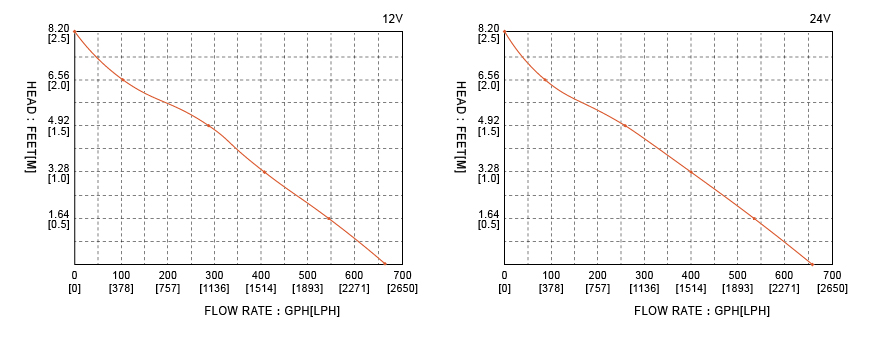

Performance
|
Voltage |
Current |
Flow rate |
Head (M） |
|
|
GPH |
LPH |
|||
|
Open |
2.48 |
676 |
2558 |
0 |
|
12 |
311 |
545 |
2062 |
0.5 |
|
12 |
3.78 |
411 |
1555 |
1 |
|
12 |
4.26 |
284 |
1075 |
1.5 |
|
12 |
4.66 |
103 |
390 |
2 |
|
12 |
5.0 |
0 |
0 |
2.5 |
|
Voltage |
Current |
Flow rate |
Head (M） |
|
|
GPH |
LPH |
|||
|
Open |
1.3 |
660 |
2498 |
0 |
|
24 |
1.6 |
533 |
2017 |
0.5 |
|
24 |
1.94 |
400 |
1514 |
1 |
|
24 |
2.31 |
263 |
995 |
1.5 |
|
24 |
2.54 |
86 |
325 |
2 |
|
24 |
2.9 |
0 |
0 |
2.5 |
|

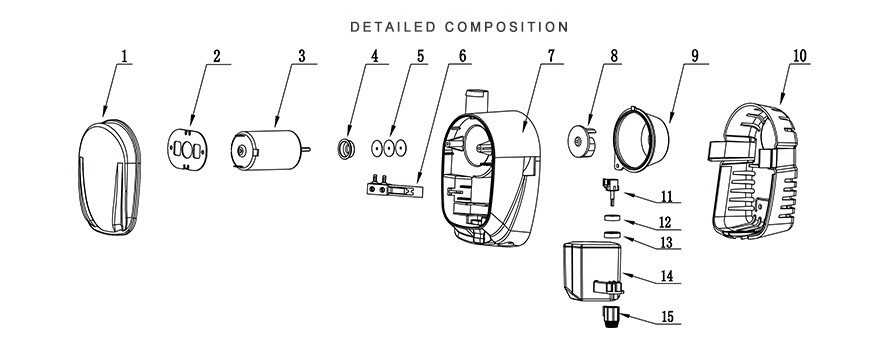

Item |
Description |
Quantity |
|
1 |
Pump cover |
1 |
|
2 |
Motor bracket |
1 |
|
3 |
Motor |
1 |
|
4 |
Motor oil seal |
1 |
|
5 |
Wear plate |
1 |
|
6 |
Switch assembly |
1 |
|
7 |
Pump housing |
1 |
|
8 |
Impeller |
1 |
|
9 |
Impeller cover |
1 |
|
10 |
Strainer |
1 |
|
11 |
Rotor |
1 |
|
12 |
Round wearplate |
1 |
|
13 |
Oil seal |
1 |
|
14 |
Float |
1 |
|
15 |
Knob |
1 |
Shipping information
|
Unit pump weight(N.W/G.W) |
0.47/0.52kg |
|
Unit size |
16.2*9.5*11.4cm |
|
Mater carton size |
64.5 x 38.5 x 24.8 cm |
|
Mater carton quantity |
32pcs |
|
Mater carton weight |
19.3kgs |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
