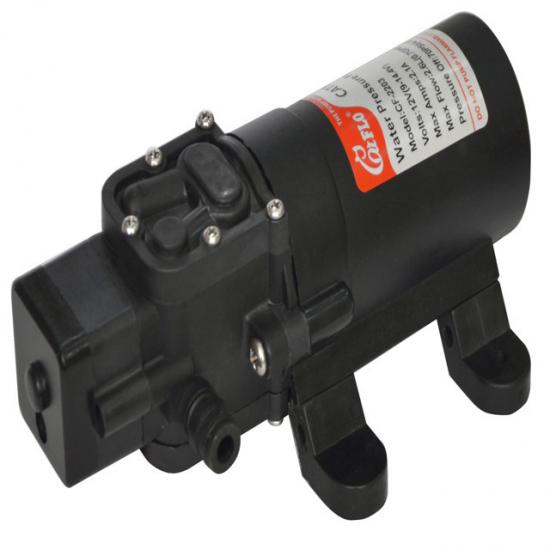

2 Chamber positive displacement diaphragm pump for smooth and quiet operation,The CF-20 series electric diaphragm water pump is self-priming and can be run dry without harm. It provides up to 4.3Liter of water per minutes. With built-in pressure switch , the pump automatically starts and stops when the faucet is opened and closed.
item no.:
CF-20lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
FOBcolor:
BLACKMOQ:
50pcs2 Chamber positive displacement diaphragm pump for smooth and quiet operation,The CF-20 series of diaphragm pumps are self-priming and can be run dry without harm. Fresh water pump provides up to 4.3Liter of water per minutes. With built-in pressure switch , the pump automatically starts and stops when the faucet is opened and closed.
Features and Benefits
l Adjustable pressure switch from 35psi-70psi for OEM when needed
l smooth and quiet operation

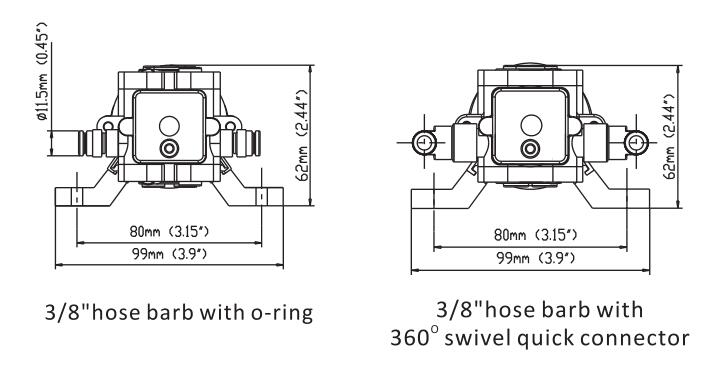

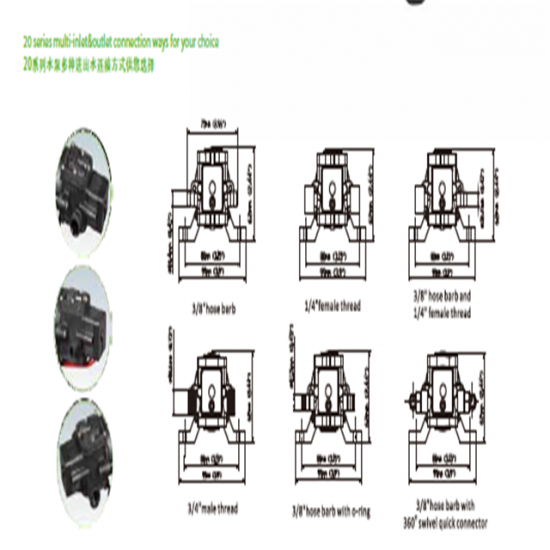

l Multi -inlet&outlet connection ways for your choice
l Self-priming
l Intermittent duty.
l Industry standard mounting pattern
l 1 Year Warranty
TYPICAL APPLICATIONS
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
|
PUMP |
|
|
Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
4 feet (1.2 m) suction lift |
|
Pressure off |
Shut-off Pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar) |
|
Valve |
EPDM |
|
Wire connection |
2-Pin/Leads |
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
4.0A |
|
Fuse |
6.0A |
STANDARD PUMP CONFIGURATIONS
|
Model |
Voltage |
Open flow (LPM/GPM) |
Pressure off (PSI/BAR) |
Amp Draw (A) |
|
CF-2201 |
12V |
2.0/0.5 |
55/3.8 |
1.6 |
|
CF-2401 |
24V |
2.0/0.5 |
55/3.8 |
0.8 |
|
CF-2202 |
12V |
4.3/1.2 |
35/24 |
2.7 |
|
CF-2402 |
24V |
4.3/1.2 |
35/24 |
1.7 |
|
CF-2203 |
12V |
2.6/0.7 |
70/4.8 |
2.1 |
|
CF-2403 |
24V |
2.6/0.7 |
70/4.8 |
1.1 |
|
CF-2203-1 |
12V |
3.1/0.8 |
70/4.8 |
2.6 |
|
CF-2403-1 |
24V |
3.1/0.8 |
70/4.8 |
1.4 |
|
CF-2202A |
12V |
2.0/0.5 |
55/3.8 |
1.6 |
|
CF-2402A |
24V |
2.0/0.5 |
55/3.8 |
0.8 |

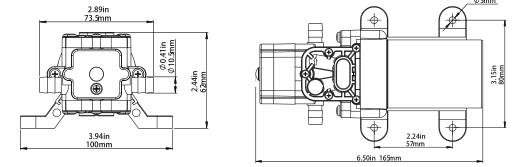

DIMENSIONS
DETAIL COMPOSITION
SHIPPING INFORMATION
|
Unit pump weight(N.W/G.W) |
0.62kg/0.7KGS |
|
Unit size |
200*115*78mm |
|
Mater carton size |
58*37.5*38cm |
|
Mater carton quantity |
50pcs |
|
Mater carton weight |
40kgs |
