CF-30 series Pumps are designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.
item no.:
CF-30lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
BLACKMOQ:
10CF-30 Series DC Diaphragm pump 12V/24V 4.5-6.0LPM 80-100PSI
CF-30 series Pumps are designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. Pumps are self-priming, can be run dry without harm and RV water pump provides up to 6Liters per minute. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Features and Benefits
l smooth and quiet operation
l Self-priming
l Intermittent duty.
l Industry standard mounting pattern
l 1 Year Warranty
l rubber feet for noise reduction from vibration
l Adjustable pressure for OEM when needed
l Hose connection with multiple fittings allow connection to any outlet
TYPICAL APPLICATIONS
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
|
PUMP |
|
|
Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar) |
|
Inlet/Outlet Ports |
3/8" (10 mm) hose barb |
|
Valve |
EPDM |
|
Wire connect |
2-Pin/Leads |
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
5.5A |
STANDARD PUMP CONFIGURATIONS
|
Model |
Voltage(V) |
Open flow(LPM/GPM) |
Pressure off(psi/bar) |
AMP Draw(A) |
|
CF-3201 |
12 |
4.5/1.2 |
100/7.0 |
4.5 |
|
CF-3401 |
24 |
4.5/1.2 |
100/7.0 |
2.5 |
|
CF-3202 |
12 |
5.8/1.6 |
80/5.5 |
5.5 |
|
CF-3402 |
24 |
5.8/1.6 |
80/5.5 |
3.0 |
|
CF-3203 |
12 |
5.2/1.4 |
100/7.0 |
5.0 |
|
CF-3403 |
24 |
5.2/1.4 |
100/7.0 |
3.0 |

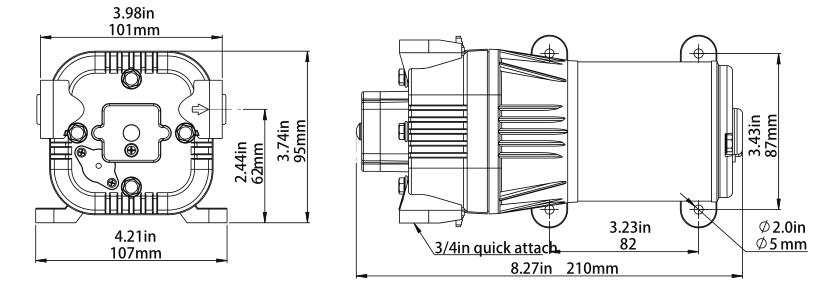

DIMENSIONS
DETAILS
l Housing Material:Nylon/Polypropylene
l Valves/Seals Material:EPDM/VITION
l Wire Connection:2-PIN Leads
l Diaphragm
Shipping information
|
Unit pump weight(N.W/G.W) |
1.2kg/1.3KGS |
|
Unit size |
185*110*65mm |
|
Mater carton size |
56*40.5*24.5cm |
|
Mater carton quantity |
30pcs |
|
Mater carton weight |
39.5kgs |
