Micro Stainless Steel Pump mainly used for Water Dispenser, Hand Disinfector/Sterilizers Filter, Medical equipment, Hand sanitizer machine, Water circulation Sterilizers, Gas tank etc.
item no.:
CD-DP-1200-1lead time:
7-30DAYSproduct orgin:
FUJIAN,CHINAcolor:
GREYMicro Mini Small 12V High Pressure Stainless Steel Pump
High Pressure Stainless Steel Pump has the advantages of compact structure, maintenance -free, oil-free, low power consumption, corrosion resistance.
The food grade stainless steel pump is single suction, single stage, centrifugal pump and has simple structure, convenient disassembly.
The
centrifugal pump is specialized for all the products which are related
to food, such as dairy products, beverages, food, cosmetics, food
additives, fine chemicals.
Shockproof device, low noise, high efficiency.Safe and durable.
Convenient maintenance.Fine production, not easy to scale.
Features and Benefits
1.Small size, high pressure
2.Low Noise level, corrosion-resisting
3. Suitable for high concentration fluid and medicine alcohol
4. Food Grade material
5. DC Power supply with low power consumption
6. Self-priming Ability
7. Compact and easy to install
8. Gas pump
TYPICAL APPLICATIONS
Used for dairy products, beverages, food, cosmetics, food additives, fine chemicals, such as
Water Dispenser
Hand Disinfector /Sterilizers
Filter
Medical equipment
Hand sanitize machine
Water circulation
Sterilizers
Gas tank
STANDARD PUMP CONFIGURATIONS
| Model | Open Flow | Volts(V) | Max Draw (A) | Inch | Power Connection |
| CFDP-1200-01 | 0.1 | 12 | 0.06 | Inside Diameter: 4MM pipe | 2-Pin/Leads |
|
Voltage |
12V |
|
Power |
0.3-3W |
|
Ideal Fluid |
10-50°C |
|
Room Temperature |
At 25°C |
|
Ambient Temperature |
>0°C~60°C |
|
Working mode |
Continuous |
|
Insulation level |
Class B |
|
Max. Pressure |
6.0 Bar |
|
Flow Rate (0bar) |
0.1GPH |
|
Noise(1M) |
<50dB |
|
Max. Vacuum |
≤-0.25 Bar |
|
Life |
Above 500 hrs |
|
Dry pumping function |
Available |
|
Installation |
Not for under water |
|
Weight |
70g |
|
Dimension |
52.00*38.00*24.00 mm |

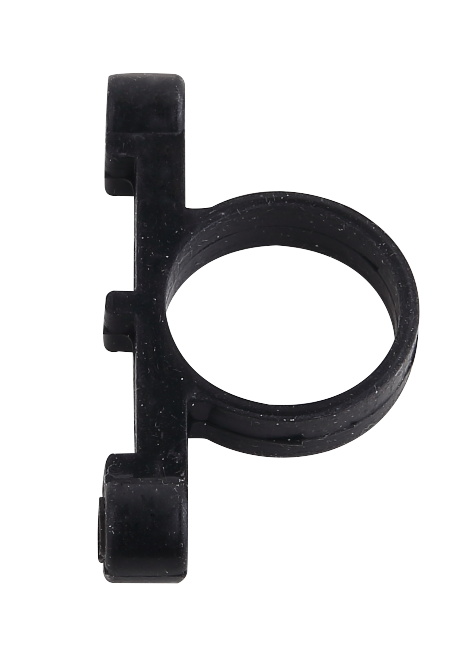

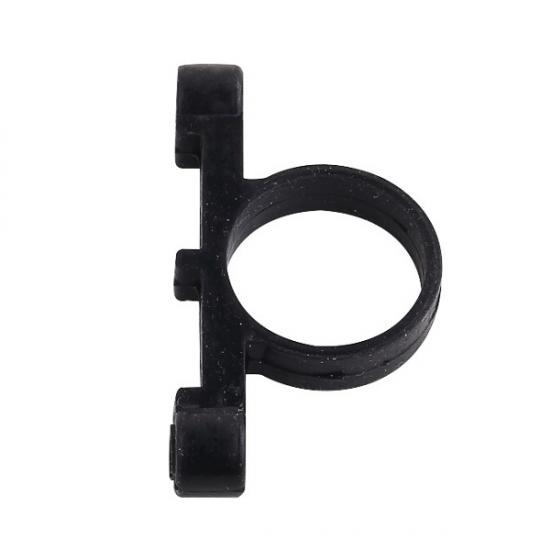

FITTINGS

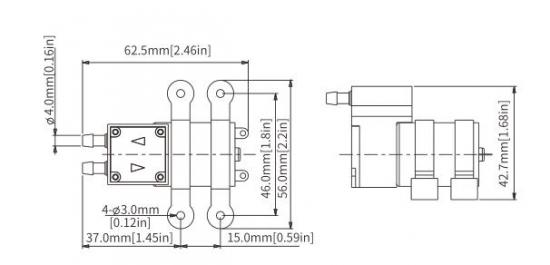

DIMENSIONS
