Oil gear pumps are positive displacement pumps, capable of operation in either direction. They may be used to perform a variety of oil transfer applications (DO NOT USE FOR GASOLINE or other combustible fluids). We update the design with robust motors, stainless steel shafts and rugged metal gears, it provides performance that you can rely on for years.
item no.:
CF-GP-1200lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
BLACKMOQ:
10

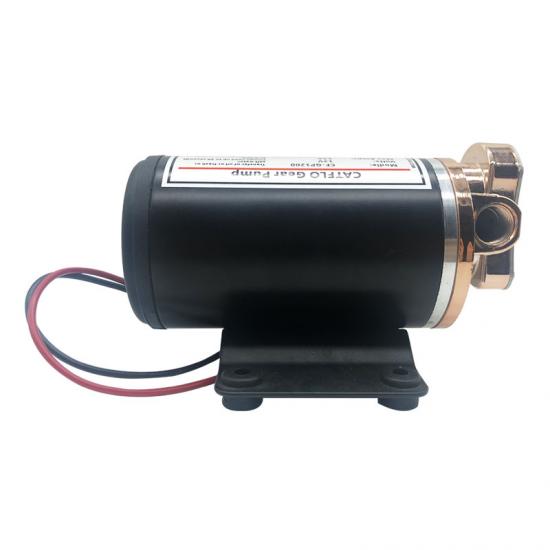

12 LPM Electric Gear Oil Transfer Pump for Yacht RV
The Electric Gear Oil Transfer Pump is Ideal Equipment For : Extracting Motor Oil From Your Vehicle Without Mess & Specialized Tools Extract The Oil From Your Car, Motorcycle, Scooter, Quad Bike, Truck, Boat, Forklift, Generator, Tractor, Ride On Mower Etc Siphon & Transfer Diesel To Cars, Trucks, Ships, Boats, Tractors, Farm Machinery, Plant Equipment Etc.
WARNING: This electric oil gear pump product is NOT suitable for gasoline/petrol. Do not use this pump to extract water, gearbox oil or easy flammable liquids (fuel, petrol etc)
Specification
PUMP
Type
Thermally Protected,High Quality Efficient Motor
Max Recommended Temperature
60° C (140° F)
Priming Capabilities
3.2 feet(1m)suction lift
Pressure off
Shut-off Pressure 40 PSI ： 30 PSI ± 5 PSI( ± 0.3 bar)
Head
9.8 feet(3m)suction lift

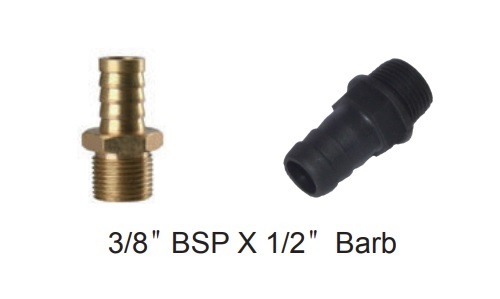

Inlet/Outlet Ports
3/8"BSP *1/2’’bard
Duty cycle
Intermittent
Leads
Wire Leads
Features and Benefits:
Application
Transmission fluid (Diesel; Lubricant; Viscous liquids)
Standard Pump Configurations
12/3.2
55/4.0
Model
Volt (V)
Flow(lpm/gpm)
Stall Pressure (psi/bar)
Max draw (A)
Inner box(mm)
N.W/G.W(kg)
CF-GP1200
12
12/3.2
55/4.0
12.0
265x135x105
2.10/2.30
CF-GP2400
24
7.0
265x135x105
2.10/2.30
Shipping information
Lead Time
| Quantity(Pieces) | 1 - 1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
