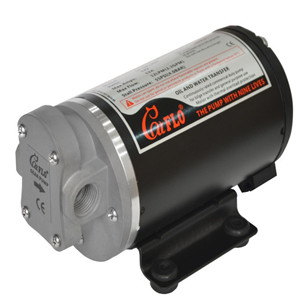

12V 3.2GPM/12LPM 55PSI DC Oil Gear Pumps

Transmission fluid (Diesel; Lubricant; Viscous liquids) gear pump is able to use for water and machinery fuel(except gasoline) Industrial use

item no.:
CF-GP-1200
lead time:
7-30 days
product orgin:
FUJIAN
shipping port:
FUZHOU(MAWEI)
payment:
TT
color:
BLACK
MOQ:
10

products details

electric gear pump

Scavenge Impeller reversible Gear pump,the best kind of small gear pump for oil scavenging.

Bronze gears,Brass pump body. No diaphragms to fail like our competitors dc oil pumps.

Gear design for maximum scavenge.

Application

Transmission fluid (Diesel; Lubricant; Viscous liquids)
electric gear pump can be able to use for water and machinery fuel(except gasoline)
Industrial use

Features:

Max Flow rate: 12LPM ( 3.8gpm)
Stall Pressure: 55PSI (4.0bar)
Super wear resistance gear
Thermally protected motor
High quality efficient motor

PUMP
Type	Thermally Protected,High Quality Efficient Motor
Max Recommended Temperature	60° C (140° F)
Priming Capabilities	3.2 feet(1m)suction lift
Pressure off	Shut-off Pressure 40 PSI ： 30 PSI ± 5 PSI( ± 0.3 bar)
Head	9.8 feet(3m)suction lift
Inlet/Outlet Ports	3/8" BSP*1/2’’bard
Duty cycle	Intermittent
Leads	Wire Leads

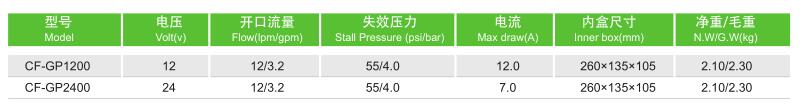

Standard Pump Configurations

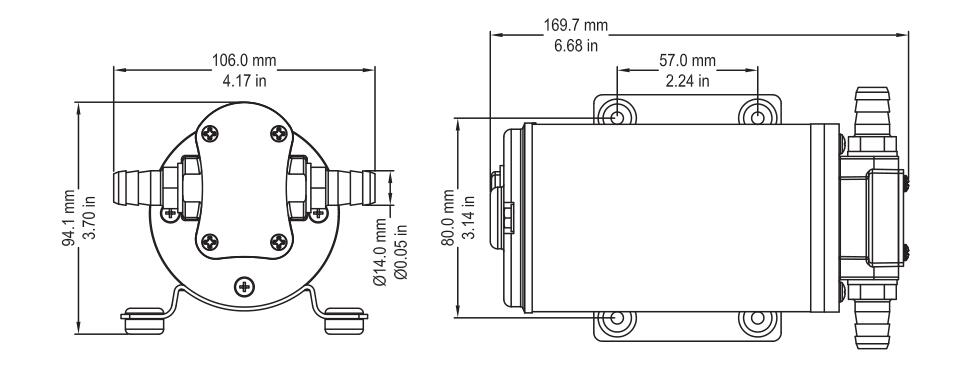

Dimension

dc oil pumps

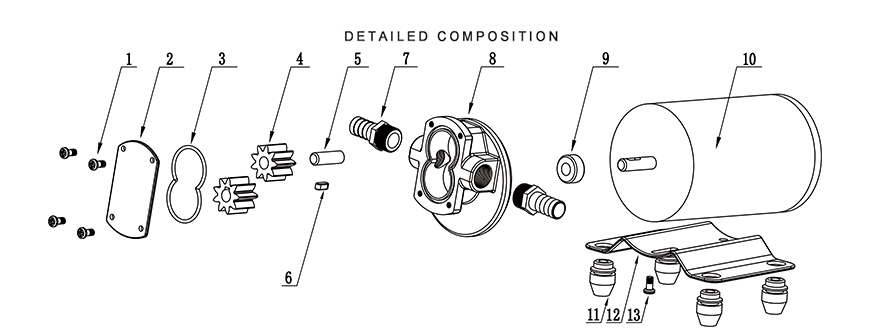

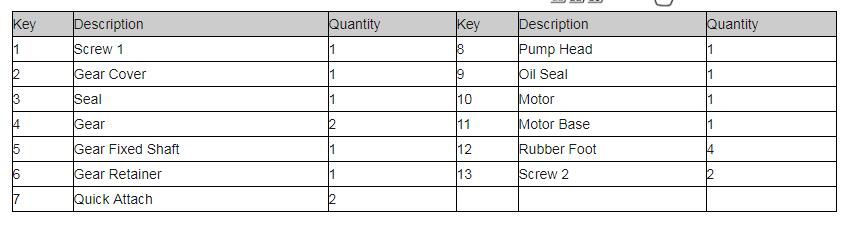

Details

gear pump electrical

hot tags :

12V oil pump 12V gear pump Oil Gear Pumps 12v gear oil pump oil transfer pump small oil pump electric gear pump dc oil pumps
