12V-32V Automatic Float Switch For Marine Boat Bilge Pump

Suitable for 12V-32V bilge pumps up to 20 amps. Designed to automatically activate the bilge pump when there is water.

item no.:
A05-202001
lead time:
5-25 working days
product orgin:
China
shipping port:
Xaimen,Shanghai,Shenzhen,Ningbo

products details

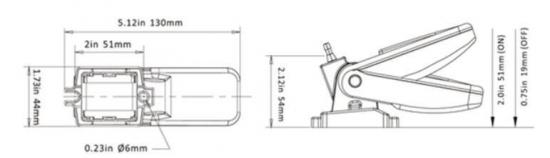

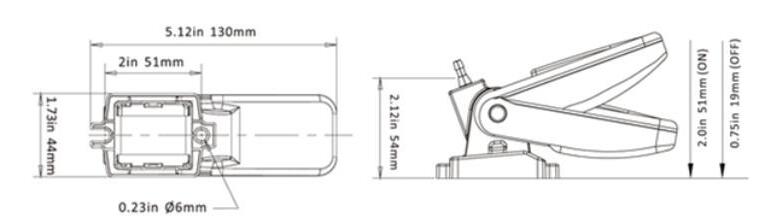

Feature& Dimension

Ignition protected
Turn pump on when water level reaches2"(51mm);
Turn pump off when water level reaches3/4"(19mm)
This product should be used with recommended size fuse for the pump to which it is connected.
Not to be used with 110V applications.
Important:Keep all wire connections above the highest water level.Wires should be sealed with a waterproof marine sealant to prevent wire corrosion!

Technical Data:

Max Amps 12Volts	18Amps
Max Amps 24Volt	10Amps
Wire Length	1m
Wire Gauge Size	16
N.W./G.W.(kg)	0.14/0.18kg
