Food safe diaphragm pump is used in many different applications and industries—such as drinking, food, beverage. Like other pump requirements, reliability is a major consideration to maximize productivity.
item no.:
CFDP-2200-01/02/03/04lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITE

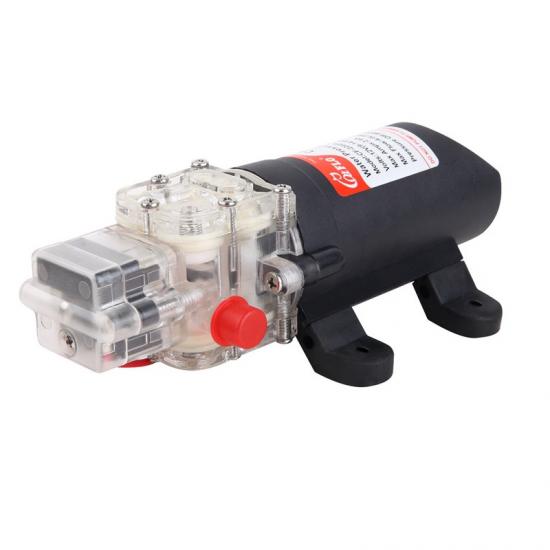

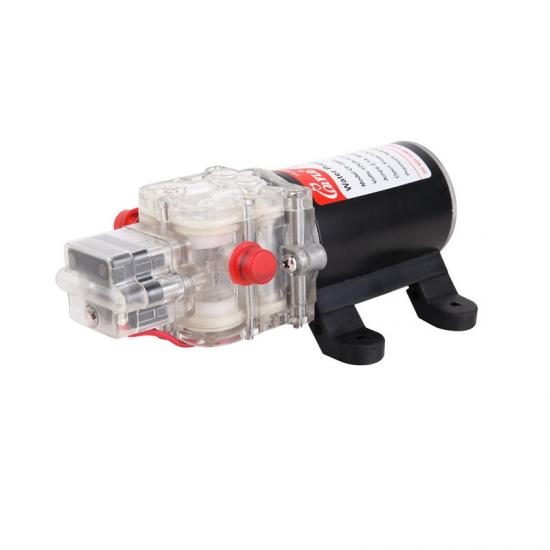

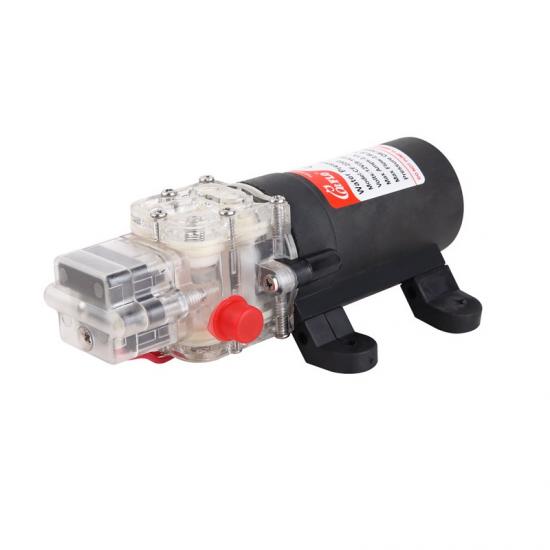

12v Food grade diaphragm Beverage pump
food safe diaphragm pump (also known as food grade pumps, food transfer pumps) are used primarily in the food processing industry, or in the manufacturing of products such as Juice or other beverage.
Today's high quality foodstuffs are made with highly expensive ingredients. And the market trend is towards more recognizable processed foods with whole vegetables and fruits. Our systems enable you to handle - transfer, dose, mix and fill - challenging ingredients with minimal damage.
All Pumps has extensive experience in the supply, service and maintenance of pumps from these and many other manufacturers for hygienic food applications.
Features and Benefits
TYPICAL APPLICATIONS
Used for drinking,Juice,beverage and other Food Hygiene Liquid
|
PUMP |
|
|
Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
4 feet (1.2 m) suction lift |
|
Pressure off |
Shut-off Pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar) |
|
Valve |
EPDM |
|
Wire connection |
2-Pin/Leads |
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
4.0A |
|
Fuse |
6.0A |
STANDARD PUMP CONFIGURATIONS
Model
Open Flow (GPH)
Volts (V)
Max Draw (A)
Inch
PSI
Power Connection
Inner box
CFDP-2200-01
3.1
12
1.5
3/8"Barb OR With O-Ring
45
2-Pin/Leads
18.6x10.5x6.6
CFDP-2200-02
3.1
12
2.1
80
2-Pin/Leads
18.6x10.5x6.6
CFDP-2200-03
4
12
2
45
2-Pin/Leads
18.6x10.5x6.6
CFDP-2200-04
4
12
2.5
80
2-Pin/Leads
18.6x10.5x6.6
CFDP-2200-05
5.8
12
4
45
2-Pin/Leads
20x11.5x8
CFDP-2200-06
5.8
12
5
80
2-Pin/Leads
20x11.5x8
CFDP-2204-01(30～80PSI）
5.8
12
5
Disconnect
Pressure80/
Start Pressure30
2-Pin/Leads
20x11.5x8

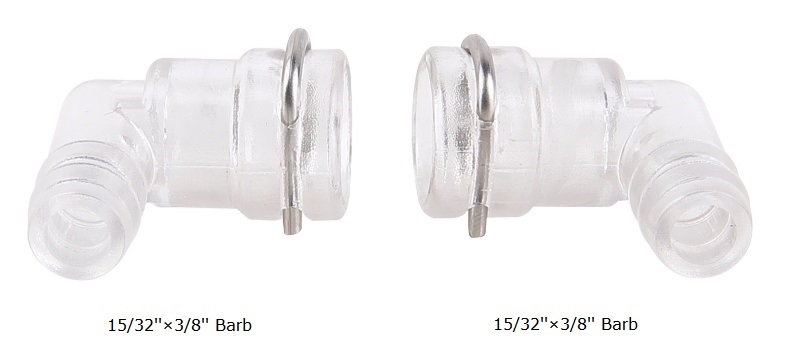

FITTINGS

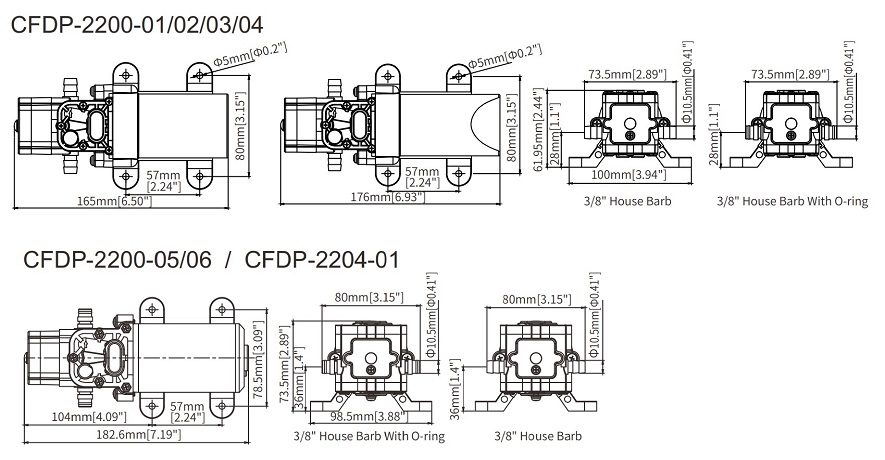

DIMENSIONS

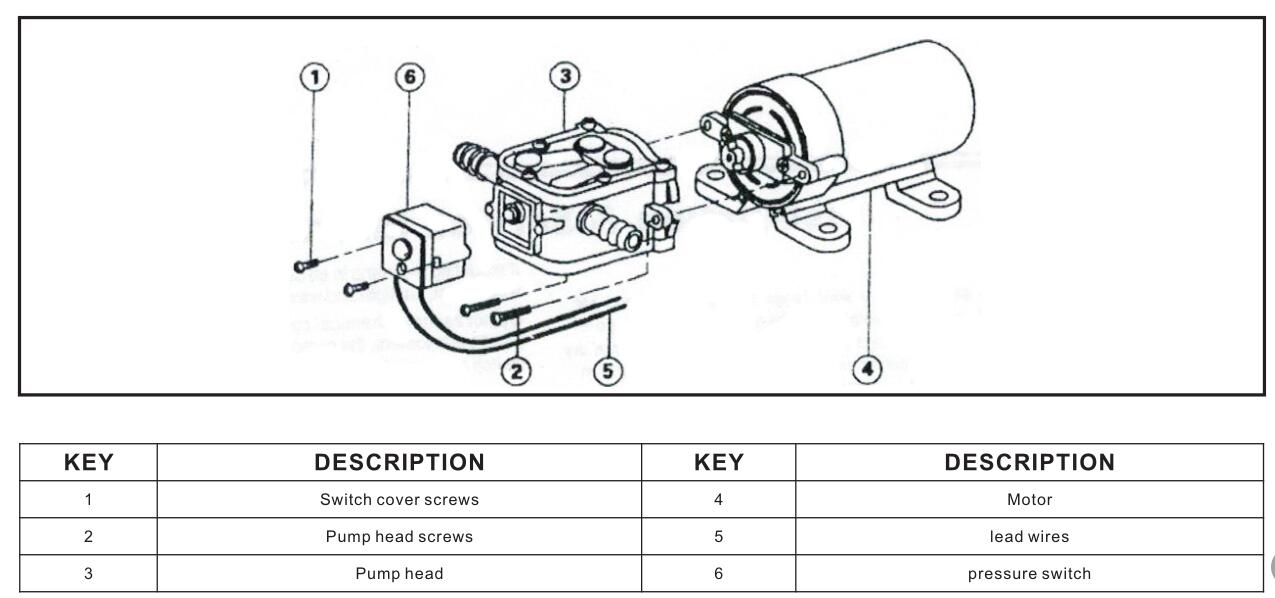

DETAIL COMPOSITION
SHIPPING INFORMATION
|
Unit pump weight(N.W/G.W) |
0.62kg/0.7KGS |
|
Unit size |
200*115*78mm |
|
Mater carton size |
58*37.5*38cm |
|
Mater carton quantity |
50pcs |
|
Mater carton weight |
40kgs |
