Self-priming electric water pumps with selflubricating flexible impeller for prolonged service life and better performance.
item no.:
CF-IP1200lead time:
7-30DAYSproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TT/LCcolor:
BLACKMOQ:

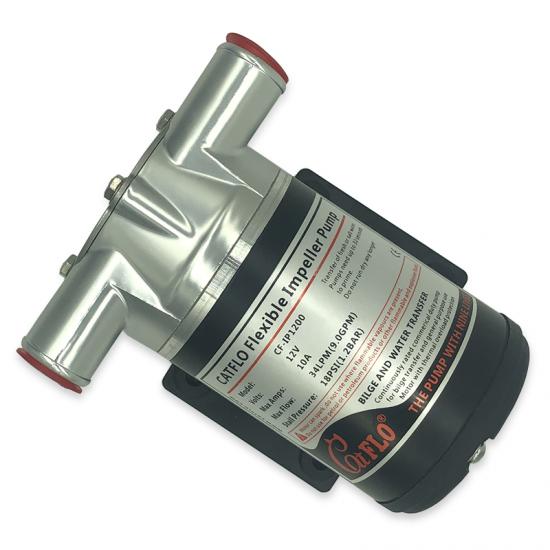

50DC micro electric marine 12v brass flexible impeller pump for wash deck
Self-priming electric pump with Super wear resistance impeller for high performance and long life. For water and salt water transfer. There are numerous fields of applications for the pump, however only exclusively with the allowed liquids mentioned: transfer of water and transfer of light weight lube oils, antifreeze, etc.
REMIND: Should be installed in a dry and ventilated position; Must not run dry, better with bilge controller panel to avoid running dry.
|
Body Materials |
Bronze |
|
Impeller |
Neoprene compound |
|
Seal |
Lip Type |
|
Inlet/Outlet Ports |
Marine 8 GPM Self Priming Impeller Bilge Pump - Replaces Water Supply Chain Provider 1/2"BSP*3/4’’Barb |
|
Voltage |
12v/24v dc |
|
Amp Draw |
Max.12.0(amp) |
|
Type |
self-priming bilge pump |
|
Mode |
Cheap 8.0 GPM 12V Industrial Self-Priming bilge Pump from China Thermally Protected,High Quality Efficient Motor |
|
Certifications Option |
CE Approval |
|
Liquid Temperature |
140°F (60°C) Max. |
|
Priming Capabilities |
3.2 feet (1 m) suction lift |
|
Max Flow rate |
30.0lpm (8.0gpm) |
|
Temperature Limits |
Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 60°C). |
· Good flow rate, continuously rated pump
· 8.0gpm (30lpm) at 10ft (3m) total head
· Self -priming up to 4ft (1.2m) allows
· Mounting above wet bilges
· Shower debris presents no problem to this bronze bodied, flexible impeller design
· Simple design means fewer wearing parts-all user serviceable
· MARINE (ignition Protection)
· Agriculture/Yacht / RV/Caravan pressurized water system
· Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
· Cleaning machine, Humidifier, Water purification, Medical apparatus
· Any other pressurization system
· Drain water on deck and wash deck
|
Model |
Voltage(V) |
Open flow(LPM/GPM) |
Stall Pressure (psi/bar) |
Max Draw(A) |
Inner box(mm) |
N.W/G.W(kg) |
|
CF-IP1200 |
12 |
30/8.0 |
18/1.2 |
12.0 |
340x120x105 |
2.20/2.50 |
|
CF-IP2400 |
24 |
30/8.0 |
18/1.2 |
7.0 |
340x120x105 |
2.20/2.50 |
