Washdown pump
home

Yacht RV & Marine

Washdown pump

CF-400Series freshwater washdown system portable automatic electric water pump for marine

CF-400Series freshwater washdown system portable automatic electric water pump for marine

CF-400 series freshwater boat washdown system portable automatic electric water pump for marine

  • item no.:

    CF-400
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
products details

DESCRIPTION


Portable boat washdown pump is perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your  deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.



A great pump for those country folk, with a small family, on tank water who only need to boost the   pressure from a tank next to the house.

We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.


Features and Benefits

l  smooth and quiet operation

l  Self-priming

l  Intermittent duty.

l  Industry standard mounting pattern

l 1 Year Warranty

l rubber feet for noise reduction from vibration

l Adjustable pressure for OEM when needed

l Hose connection with multiple fittings allow connection to any outlet




TYPICAL APPLICATIONS

Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.



PUMP

Type

4Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

 (2.0 m) suction lift

Pressure off

Shut-off Pressure 40PSI

Inlet/Outlet Ports

3/8" (10 mm) hose barb

Valve

EPDM

Wire connect

2-Pin/Leads


MOTOR

Leads

18 AWG, 14" (35 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent

Max.Amp Draw

10.5A




STANDARD PUMP CONFIGURATIONS

Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

AMP Draw(A)

CF-410

12

18.5/4.9

40/2.8

6.5

CF-411

24

18.5/4.9

40/2.8

4.0

CF-402

12

18.5/4.9

40/2.8

1.5

CF-403

24

18.5/4.9

40/2.8

0.8

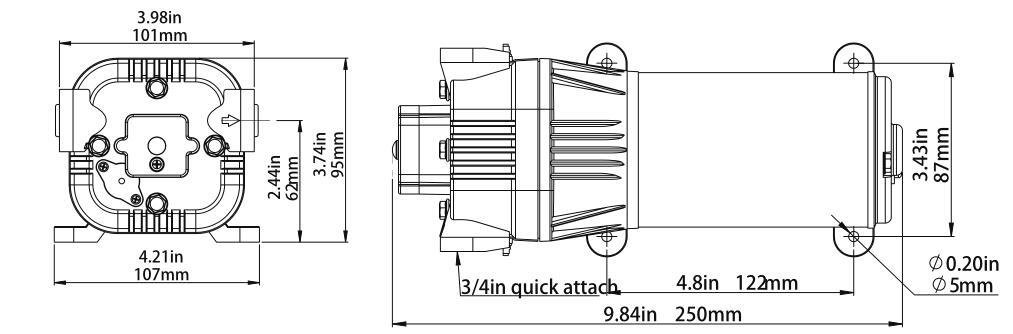

DIMENSIONS


DETAILS


l    Housing Material:Nylon/Polypropylene

l Valves/Seals Material:EPDM/VITION

l Wire Connection:2-PIN Leads

l Diaphragm




Shipping information

Unit pump weight(N.W/G.W)

2.2kg/2.5KGS

Unit size

340*120*105mm

Mater carton size

64*36*22.5cm

Mater carton quantity

10pcs

Mater carton weight

30.5kgs
