CF-410 series freshwater washdown system portable automatic electric water pump for marine
item no.:
CF-410lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
BLACK
DESCRIPTION

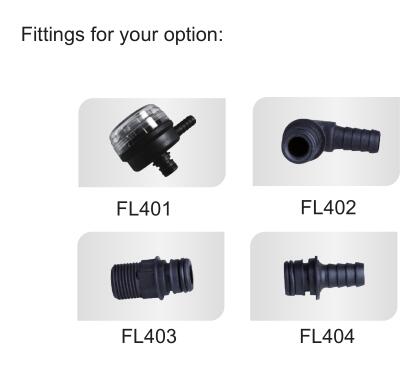

Perfect for caravans, boats, motorbikes, trucks and camping. Use boat washdown system with fresh or salt water with your deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.
A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.
We have tested these boat water pumps freshwater and found they will operate to a 2 metre suction lift and 5 metre head with no problems.
Features and Benefits
l smooth and quiet operation
l Self-priming
l Intermittent duty.
l Industry standard mounting pattern
l 1 Year Warranty
l rubber feet for noise reduction from vibration
l Adjustable pressure for OEM when needed
l Hose connection with multiple fittings allow connection to any outlet
TYPICAL APPLICATIONS
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
|
PUMP |
|
|
Type |
4Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar) |
|
Inlet/Outlet Ports |
3/8" (10 mm) hose barb |
|
Valve |
EPDM |
|
Wire connect |
2-Pin/Leads |
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
5.5A |
STANDARD PUMP CONFIGURATIONS
Model
Voltage(V)
Open flow(LPM/GPM)
Pressure off(psi/bar)
AMP Draw(A)
CF-410
12
15/4.0
40/2.8
6.5
CF-411
24
15/4.0
40/2.8
4.0

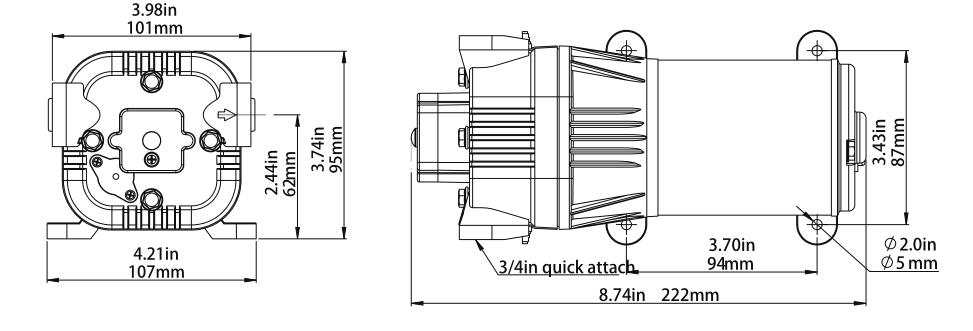

DIMENSIONS
DETAILS
l Housing Material:Nylon/Polypropylene
l Valves/Seals Material:EPDM/VITION
l Wire Connection:2-PIN Leads
l Diaphragm
Shipping information
|
Unit pump weight(N.W/G.W) |
2.2kg/2.5KGS |
|
Unit size |
340*120*105mm |
|
Mater carton size |
64*36*22.5cm |
|
Mater carton quantity |
10pcs |
|
Mater carton weight |
22.5kgs |
