CF-65 Series DC Marine Macerator Pump 45LPM

CF-65 Series DC Marine Macerator Pump 45LPM

12V macerator pump for RV

  • item no.:

    CF-65A
  • lead time:

    7-30DAYS
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT LC
  • color:

    BLACK
products details

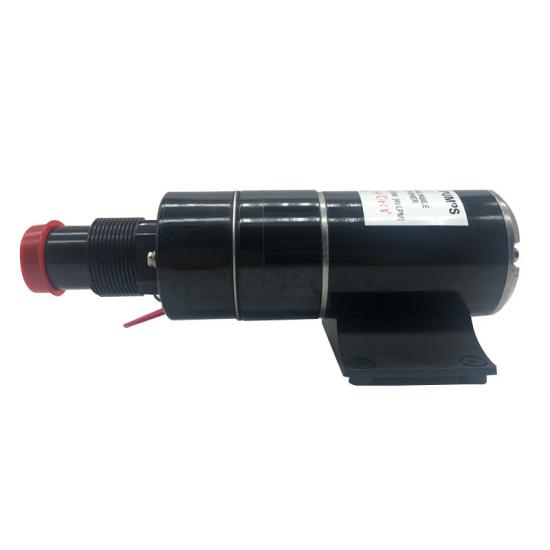

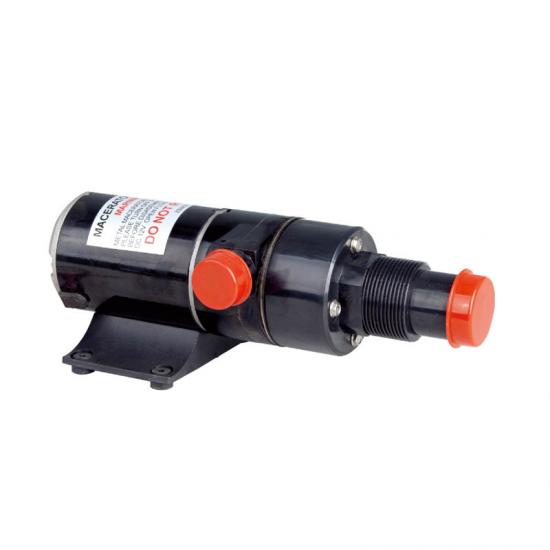

CF-65 Series DC Marine Macerator Pump 45LPM

Macerator Pump now has a fully sealed motor and a new more powerful chopper blade. The sealed motor consists of o-ring sealed end bells, sealed bearings and a hard durable powder coating to prevent corrosion occurring both internally and externally. A new four bladed chopper has been added to further reduce the possibility of clogging. The DC macerator pump unit is the ideal solution for the emptying of marine holding tanks, fish boxes and livewell receptacles. We are professional macerator pump manufacturers.



Specification


Inlet size
50mm
Outlet size
25mm (1” barb)
Ports

1-1/2” NPT; 1-1/2” Hose Barb

impeller
8MM

Flow Rate

45LPM(12.0GPM)



FEATURES & BENEFITS
  • Self-priming to 4ft(1.2m) vertical lift
  • Four blade chopper reduce clogging
  • Thermally protected sensor provides adequate run dry period to allow initial priming for the pump
  • Triple sealed motor to prevent both internal and external motor corrosion
  • Easy reach knob in case of time
  • Ignition protected
  • High quality motor with a new seamless shell and splash proof design
  • Impeller design and including O-ring sealed end bells
  • Pump grinds waste into small particles for easy disposal

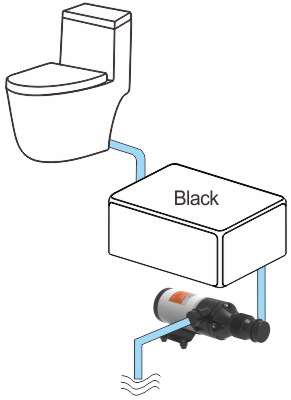

APPLICATIONS


can be used in Yacht, RV, mobile kitchenware, Toilet exhaust system



Dimension


PUMP CONFIGURATIONS


Model

Voltage

Open flow (LPM/GPM)

Amp Draw(A)

Pressure off

N.W/G.W(KG)

CF-65A

12

45

10

NO

2.1/2.3

CF-65A

24

45

5

NO

2.1/2.3


Pressure



Flow



Current

Psi

Bar

Gpm

Lpm

Amps

0

0

10.8

40.8

12.0

4

0.28

7.93

30.0

12.8

8

0.55

6.08

23.0

13.5

12

0.83

3.96

15.0

14.3

16

1.1

0

0

0



Shipping information


Unit pump weight(N.W/G.W)

2.1/2.3 kg

Unit size

310*120*135mm

Mater carton size

65*31.5*29.5 cm

Mater carton quantity

10 pcs

Mater carton weight

24.5kgs
